KRYO360 controlled rate freezer
A controlled rate freezer ideal for an IVF, ART or research laboratories - Kryo 360
Menu driven with fast cooling rates, controlled heating and multiple safety features.
Repeatability, consistent results and data recording are available from this reliable system used to freeze biological samples prior to long term cryo storage.
The equipment has multiple safety features, has data printing via its integral printer and allows multiple protocols. Controlled freezers give consistent results with validated high post thaw viability.
Benefits
Simple to use through easy menus
Safety records: ‘Run’ print out available
User can define Horizontal or Vertical freezing
Warming ramps are controlled
Recording assists validation processes
User changeable protocols allow technique updates
PC failure accommodated – when running with software
Features
Controlled heating
Chamber volume: 1.7 or 3.3 litres
Copes with temporary power/system outs
Lower temperature limit: -180 ºC
User calibration with hard copy
Cooling rates: -0.01 to -50 ºC/min
PC connection compatible
Controlled heating rates: 0.01 to 10 ºC/min
Time and date stamping

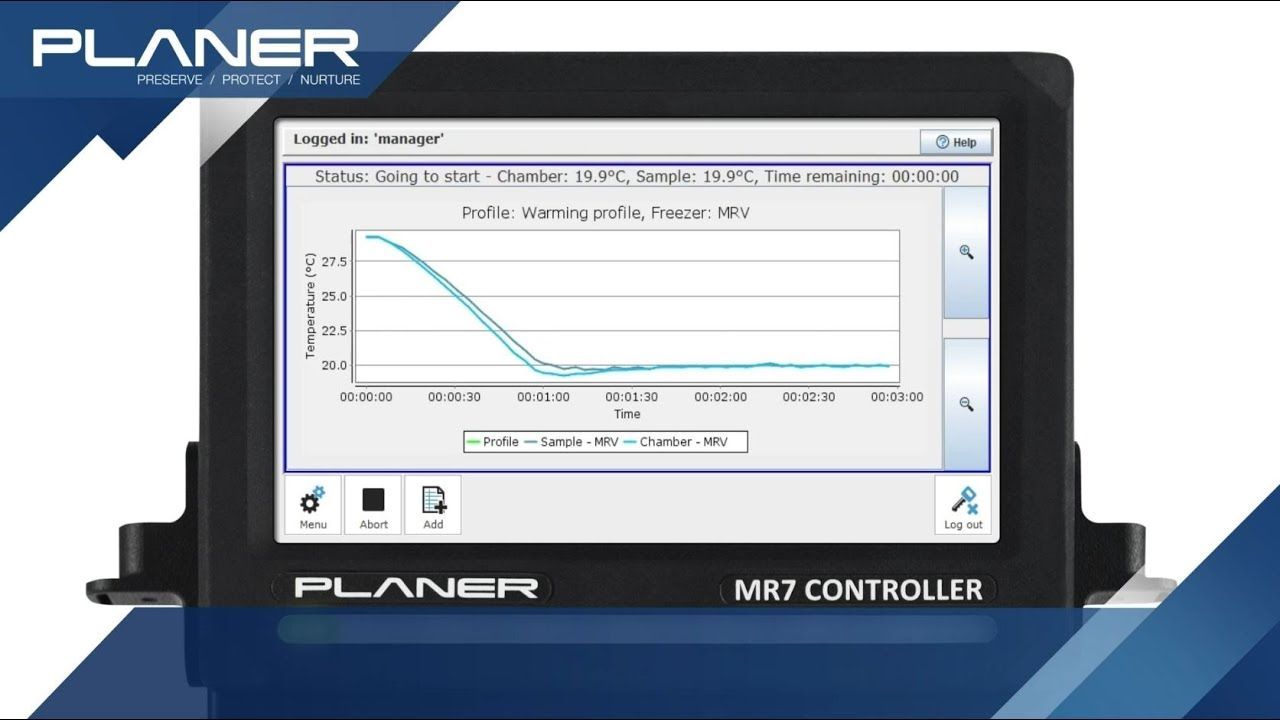

System controller: Planer's MRV controller
Programme preview before run
DeltaT Lite Software (Upgrades: V6/V7)
Control and data systems separated
Data storage and run are independent
Straw capacity: 60 x 0.25 ml or 45 x0.5ml
Vial or ampoule capacity: (30 or 60) x 2 ml
Straws in 15 positions radially located
Vials in 15 positions radially located
